SpeedWorks

We collect all information
about SpeedWorks in here

We prepare what you can’t imagine.
Improve your skill with the tools by following the examples

Batch Job

Minimize repetitive
work simply

Modeling

Design complex models easily

Drawing

Create draft accurately

File Management

Rearrange the files of
products and
drawings efficiently

I would like to do
what I'm curious about.

Get familiar what you need.

All Batch Job Modeling Drawing File MgntFile Management

Batch Job

SpeedWorks will save your time.

Just one click to solve repetitive works.

Batch Property Material

Edit properties and materials of
an assembly’s components in a table.
Batch Convert Drawing

Print out multiple drawing files
in the formats such as DWG and PDF etc.
with or without a stamp in batches.
Configuration Manager

Separate each component’s configurations
in batches. Get rid of unnecessary configurations to manage files effectively.
Component Explorer

Search a component using specific
conditions. Hide/Show or Suppress/Unsuppress
the component if needed.
Batch Drawing Template Change

Standardize sheet format.
Cut List Properties

You can easily batch edit cut list
properties in sheet format.
Manage Properties tab file

Select multiple files to change
custom properties files.
Cut List Items

Batch exclude/include
multiple Cut List Items included
in part and assembly documents.

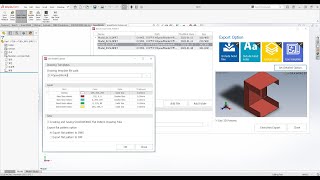

Batch Flat Pattern Exporter

Export DWG/DXF files from multiple sheet metal parts with various options
Auto Barcode Insert

Generate and insert a barcode/QR code
into multiple drawing files.
Copy Property

Copy file properties to many different parts
assemblies, and drawing file properties in batches
Batch Rebuild

batch rebuild a large number of files along with reference documents
3D Model Batch Converter

Batch convert multiple 3D models to IGES, STEP files, etc.

Modeling

We made auxiliary functions for users to help design complicated models.

Primitives

Generate frequently used primitives
such as a box, a cylinder, a cone,
a sphere and a torus without sketching.
Parameter Coordinate System

Create a coordinate parameter system on a
random location. Insert specified values of
a location and an angle.
Create Batch Point

Create multiple points or edges
on a random location or on the selected
plane by using txt or csv files.
3D Sketch Conversion

Create batch holes based on
the inserted 2D coordinates list.
Create Batch Hole

Build optimized environment by control
SOLIDWORKS performance related
options at once.
Booster

Build optimized environment by control SOLIDWORKS performance related
options at once.
Hole Color Editor

Analyze all diameter and depth of holes in a model, change the color of holes
depended on the analysis result.
Auto Faces Split

Create split lines on components by detecting contact area between components.

Drawing

Providing accurate drawings can reduce errors
in the manufacturing process.

Advanced Layer

Merge of layers, batch delete
of layers and Separate layers
by annotation type.

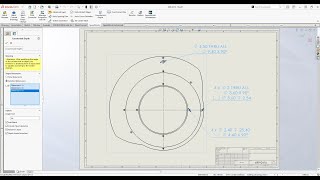

Hole Spacing Dimensions

Insert spacing dimensions of multiple
holes in batches.
Sketch Centerline

Create a sketch centerline automatically based on the edge of a revolving face.
Hide Distant Edges

Hide all edges that locate deeper than
the inserted depth at the
selected drawing view.
Hole Count Delimiter

Substitute the sign ‘x’ at
therback of hole counts to other signs.

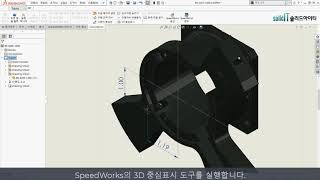

3D Center Mark

Insert a 3D center mark on the 3D model
view of SOLIDWORKS drawing through
the 3D Center Mark program.
Font Converter

Change font on drawing file.
Countersink Depth

Convert countersink hole callout angular value into depth value.
Tolerance Manager

Easily add/remove tolerance into dimensions.
MergeDrawings

Merge multiple drawing files into
a single DWG file.

File Management

Manage your works efficiently.
It is the start of a precise design.

Rename Component

Rename a component with its
reference drawings
Component Separation

Copy/Replace components, Copy as
reference drawings of the components and
link reference relations automatically.
Batch Rename

Select multiple files to rename
those with reference drawings.
Folder Cleaner

Clean out unused files in the folder by
the selected assembly base automatically.
Save As in Specific Location

Save recyclable parts with their reference
drawings in the specified folder.
Multibody Separation

Like welded structures, multiple bodies can be divided into part files at once.
Tree Organizer

Assembly tree sorting and organizing
component into folders as specific type.
Component Drawing List

Search Drawing of Assembly Components and diplay as a list
